THE NEXT EVOLUTION OF PERSISTENT CONNECTIVITY
The PT5 is a dual-function accessory for the MPU5 that connects you and your team to the cloud via 5G and connects devices to the MPU5 via Wi-Fi.
5G Cellular modem and dual Wi-Fi access points – simultaneously
5G connectivity designed for the MPU5 & Cloud Relay™
Connect Wi-Fi devices to the MPU5 without cabling
Delivers high throughput while minimizing power consumption
Ruggedized, approved 5G cellular modem with FirstNet support.
Designed for the MPU5 – no cables or additional batteries required
Multi-carrier capable – supports physical SIMs & international roaming, including Band 14
Leverage host nation cellular networks with two layers of NIAP- approved encryption
Dual Wi-Fi 6e access points capable of simultaneous use of 2.4 and 5 GHz
Up to 200 Mbps speeds
25 foot range
Connect 10+ Wi-Fi devices to the Wave Relay® MANET without cabling
DHCP Support
WPA2 & WPA3 Security
Randomized MAC addreses
Random, non-attributable SSID generation
SSID broadcast can be disabled
Plastic housing designed to meet IP66 and MIL-STD-810
Compatible with all MPU5 ports

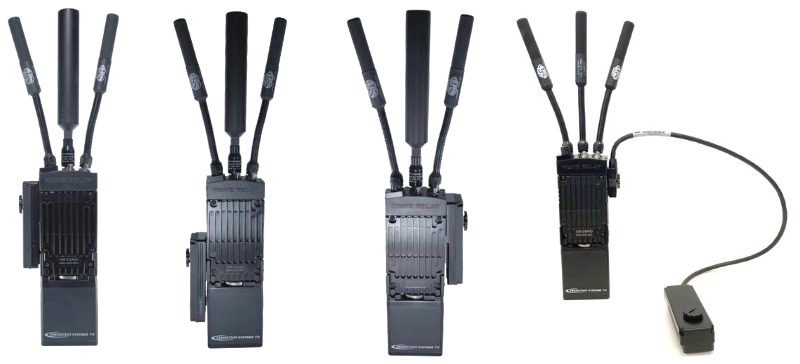

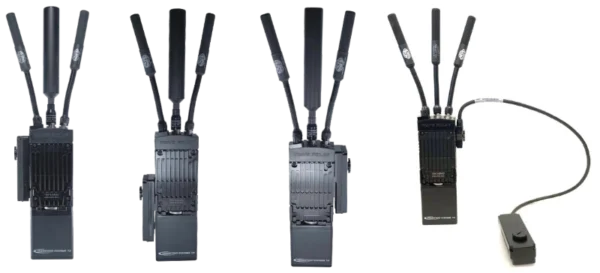

Mounts directly to MPU5 or via extension
Simple configuration at scale for automated deployment across teams
PT5 settings are managed by the MPU5, allowing team members to connect any PT5 and their settings will be applied.
MPU5 randomly assigns Wi-Fi channels, MAC addresses, and SSIDs to the PT5, simplifying configuration and maximizing performance.
THE NEXT EVOLUTION OF PERSISTENT CONNECTIVITY
The PT5 is a dual-function accessory for the MPU5 that connects you and your team to the cloud via 5G and connects devices to the MPU5 via Wi-Fi.
Band
5G NR, LTE, LAA, WCDMA (DB-DC-HSDPA),
TD-SCDMA, CDMA 1x, GSM/EDGE, CBRS
Carrier
AT&T
AT&T FirstNet
Supports roaming
Modem
Certified 5G
3GPP Release 16 compliant
Antenna
Integrated Laser Direct Structure (LDS)
Antennas etched into plastic enclosure
SIM
Nano-SIM tray
5G Chipset
Snapdragon® X62 Modem RF System from
Qualcomm Technologies, Inc.
5G Spectrum
Sub-6 carrier aggregation (FDD-TDD, FDD-
FDD, TDD-TDD), Dynamic Spectrum Sharing (DSS)
5G Modes
FDD, TDD, SA (standalone),
NSA (non-standalone)
Bandwidth
120 MHz
Modulation
256-QAM
Wireless
4×4 MIMO
Process Size
4 nm
Interface
Wave Relay® Web Management Interface (WMI)
Management
Network Status compatible
Configuration
Network default compatible
Operating Temperature
-20°C to +60°C
Ingress Protection
IP66
Ruggedization
Designed to MIL-STD-810
Dimensions
3.94 x 1.52 x 0.73 in.
10 x 3.85 x 1.85 cm
Weight (PT5 Device Only)
3 oz.
85.5 g
Mounting
Direct to MPU5: Any Port

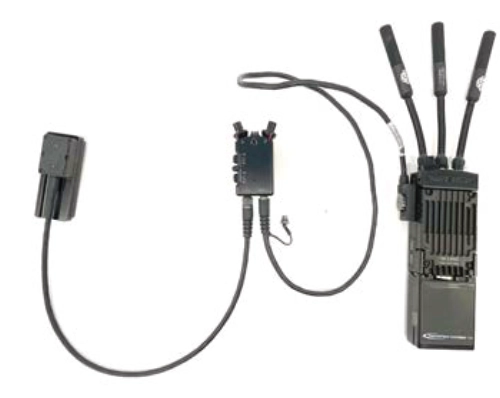

Extension Cable: Any Port
PTT Cable: PTT USB Port
Material
Molded Plastic
Color
Black
External Power Required
No
Max. Power Draw
2.4W
Version
802.11 a/b/g/n/ac/ax
Bands
Dual Access Point (AP) – Can operatesimultaneously
Wi-Fi AP 1: 2.4 GHz
Wi-Fi AP 2: 5 GHz
RF Output Power
22 dBm / 159 mW Max.
Configurable
Antenna
Integrated Laser Direct Structure (LDS)
Antennas etched into plastic enclosure
Client Device Compatibility
Any EUD, Laptops, IoT devices, etc.
Simultaneous Client Devices
10+
SSID
Randomized from onboard dictionary
Configurable SSID and password
SSID broadcast can be disabled
Security
WPA2
WPA3
Randomized MAC address
