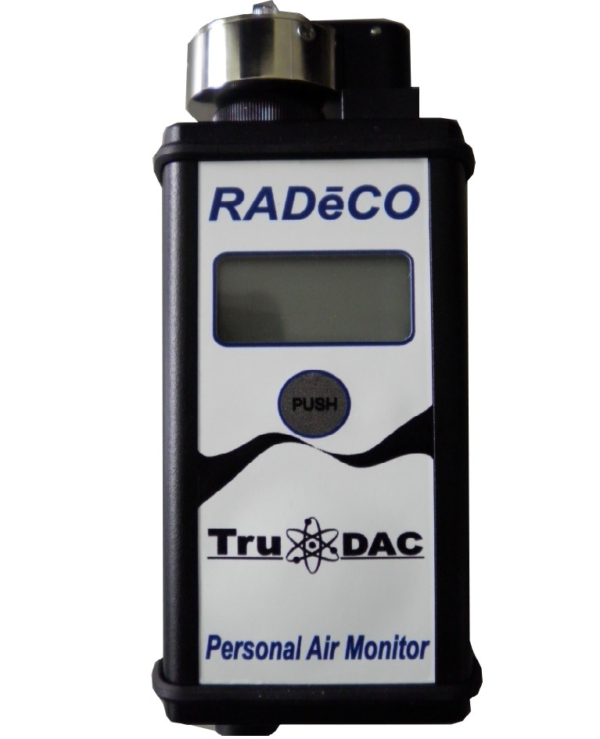

TRU-DAC

The TRU-DAC Personal Air Sampler determines the inhalation dose obtained from the exposure to long living Alpha and Beta nuclides (LLRD) in the breathing air.

SHARE THIS PRODUCT

Share on facebook
Share on twitter
Share on linkedin
Share on email

Features

  • Ultra Portable & Light Weight
  • Personal Alpha/Beta Air Sampler
  • Acoustic And Optical Alarm
  • 24 Hours Of Operation, Only 1 Hr Recharching Time
  • Fully Radon Compensated
  • Software For Data Analysis And Archiving

Description

The TRU-DAC Personal Air Sampler determines the inhalation dose obtained from the exposure to long living Alpha and Beta nuclides (LLRD) in the breathing air.

The aerosols will be accumulated on the surface of a membrane filter by an internal pump. The collected activity is analysed by a semiconductor detector with subsequent Alpha spectroscopy and Beta gross counting.

The influence of natural occurring Radon daughters is fully compensated.

An accurate determination of the obtained dose without any additional equipment is possible by a special filter analysis mode. The small filter paper (17.5 mm diameter) can be used for preservation of evidence.

The lightweight (less than 1 lb) instrument can be worn on the body without impairment of the mobility. Sampling head, battery and electronics have been integrated into rugged metal enclosure of the size of a mobile phone. Therefore, no additional cables and hoses are required.

Dangerous doses will be detected within 60 Seconds and signalized by an acoustical and an optical alert. The display, equipped with a with bright back-light shows the recent dose values (μSv or mrem) as well as the over all count rates. The internal rechargeable battery allows approx. 24 hours of autonomous operation – it takes only one hour to recharge the battery.
